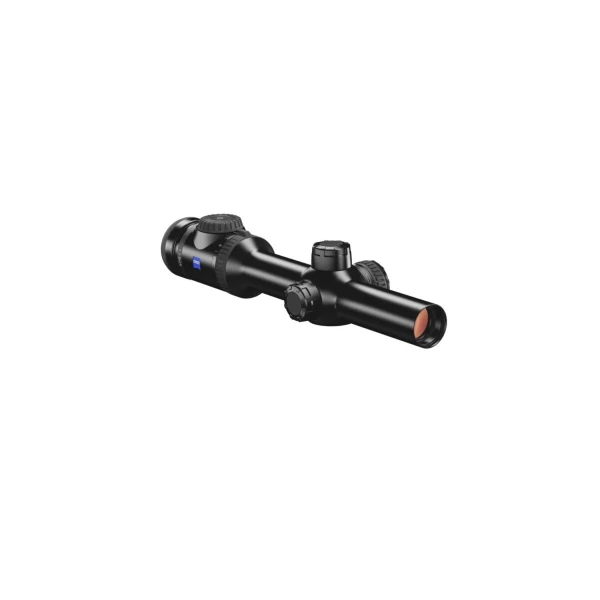

ZEISS VICTORY V8 1,1-8×24 Belyst T* 30 mm

Beskrivelse

Magnification

1.1 – 8 ×

Effective lens diameter

10.6 – 24 mm

Light transmission

92%

Exit pupil diameter

9.9 – 3.1 mm

Twilight factor

3.4 – 13.9

Field of view at 100 m (yds)

39.6 – 5.4 m (119 – 16 ft)

Objective viewing angle

22.2° – 3°

Diopter adjustment range

− 3.5 | + 2 dpt

Eye relief

92 mm (3.6 “)

Parallax setting

100 m (109 yds)

Vertical adjustment range at 100 m

500 cm

Lateral adjustment range at 100 m

320 cm

Adjustment per click at 100 m

1 cm

Centre tube diameter

30 mm

Eyepiece tube diameter

46 mm

Objective tube diameter

30 mm
Features

LotuTec | Nitrogen filled

+ | +

Water resistance

400 mbar
Physical

Operating temperature

− 25°C | + 50°C (− 13°F | + 122°F)

Length

283 mm (11.1 “)

Weight (without inner rail)

550 g (19.4 oz)

Weight (with inner rail)

590 g (20.8 oz)
