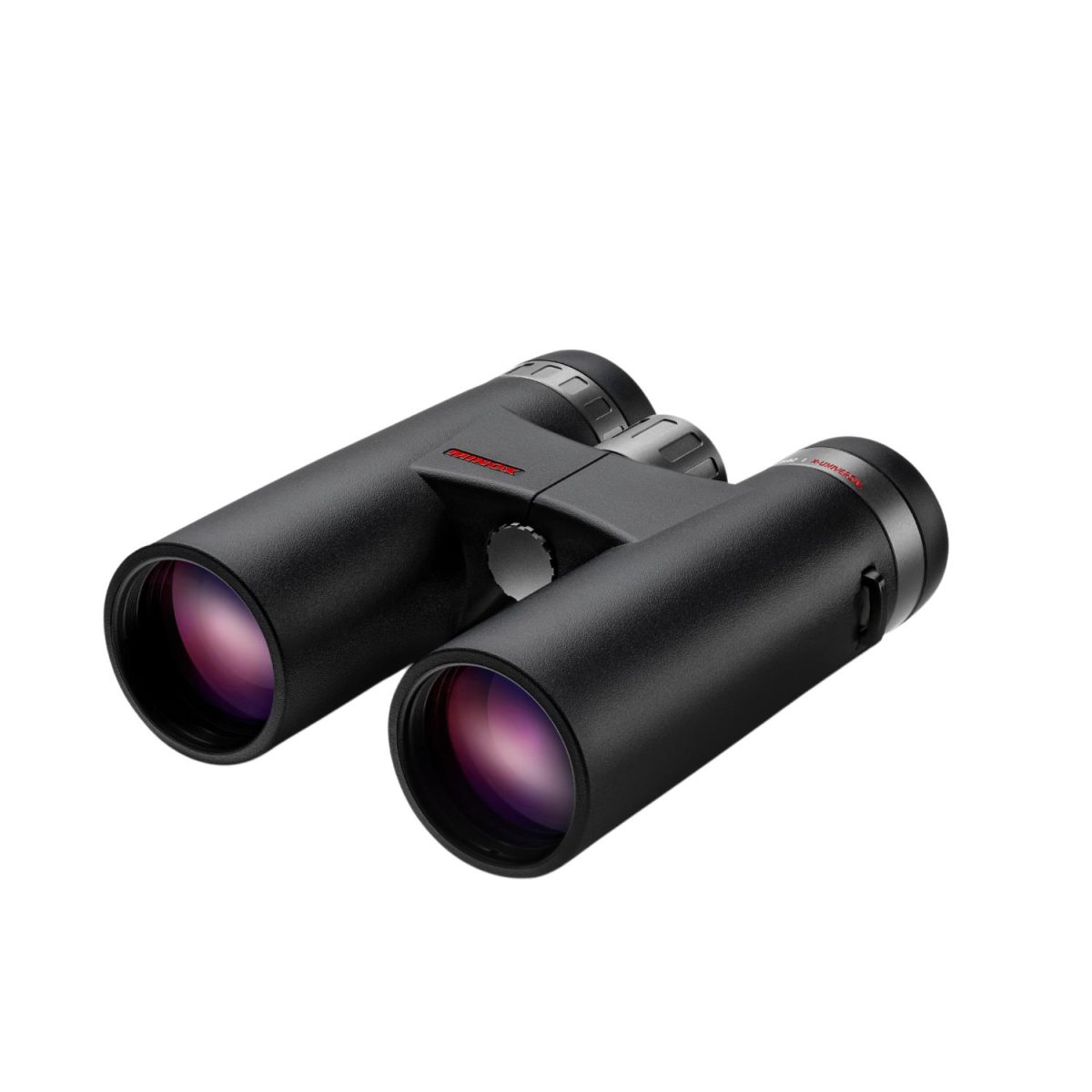

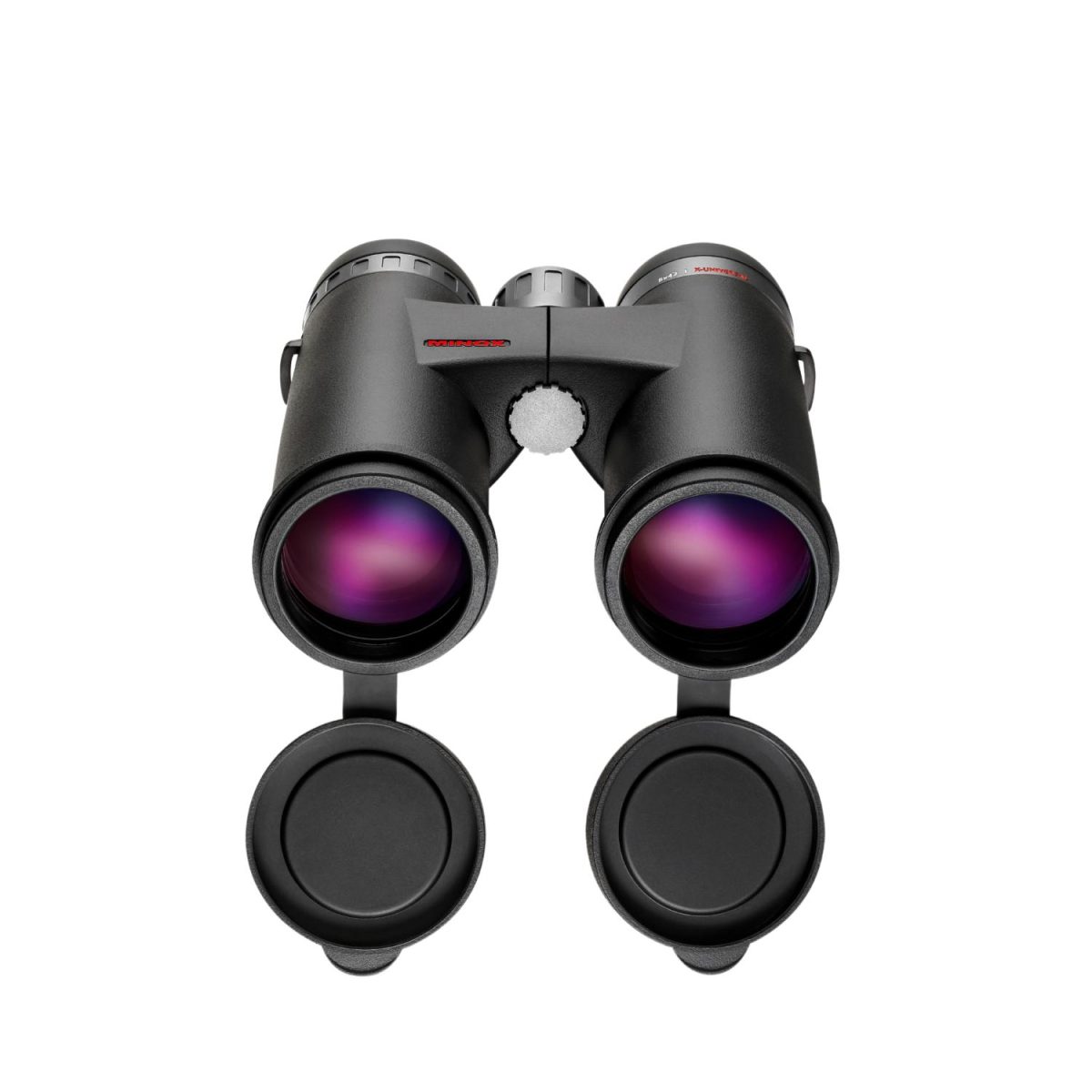

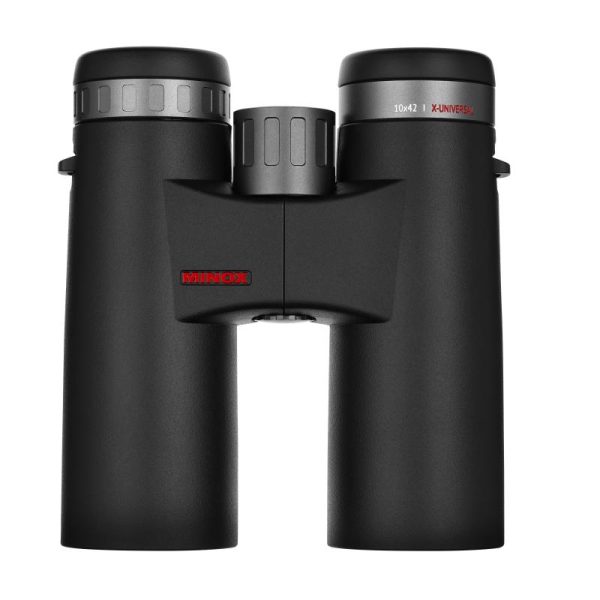

Minox X-Universal 10x42

X-Universal
Model 8×42 10×42 10×50
Magnification 8x 10x 10x
Lens diameter (mm) 42 42 50
Exit pupil (mm) 5,25 4,2 5
Field of view at 1,000 m (m) 142 115 115
Field of vision Eyeglass wearer 100 100 100
Close focus (m) 18,4 16 18,1
Diopter adjustment (dpt.) 56–76 56–76 56–76
Near distance (m) 1,5 1,5 2,5
Diopter compensation (dpt) ±5 ±5 ±5
Twilight factor 18,3 20,5 22,4
Transmission [%] ≥88 (Day) /≥85 (Night) ≥88 (Day) /≥85 (Night) ≥88 (Day) /≥85 (Night)
Operating temperature °C -25 up to +55 -25 up to +55 -25 up to +55
Nitrogen purged Yes Yes Yes
Waterproof Yes, 1 (for 30 min) (IPX7) Yes, 1 (for 30 min) (IPX7) Yes, 1 (for 30 min) (IPX7)
Weight (g) ≤725 ≤705 ≤925
Measurements (mm | HxWxD) 145×117×50 141×117×50 167×117×58
Order no. 80416208 80416209 80416210
