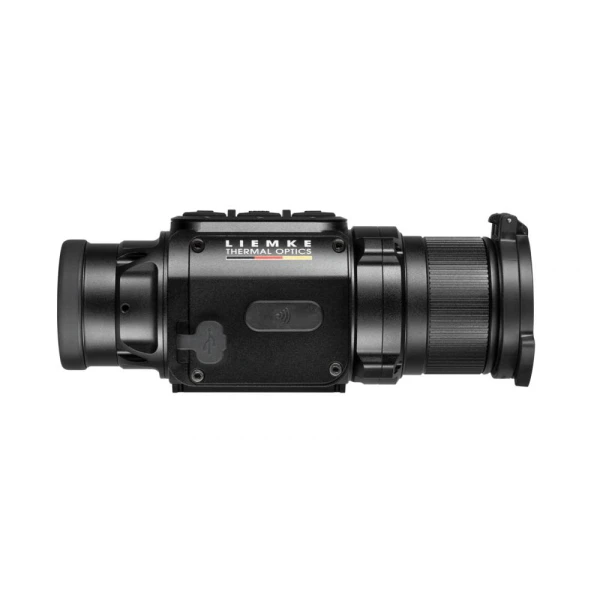

Liemke Luchs-1

Beskrivelse

POWERFUL

640×512 12μm VOx Sensor for high contrast and detailed image
Large field of view of 22 m / 100 m
Range of 1.750 m
Steadfast due to built-in rechargeable battery with up to 9 hours duration
32 GB internal memory
Absolutely repeatable due to precisely tuned collimator

FAST AND QUIET

Ready for action at any time – startup time of only 5 seconds
Whisper quiet calibration procedure

TOUGH

Robust and shock-resistant aluminum housing – tested according to the requirements for premium riflescopes
Water and dust protected in accordance with IP67

ADAPTABLE

Suitable for forest or field hunting –

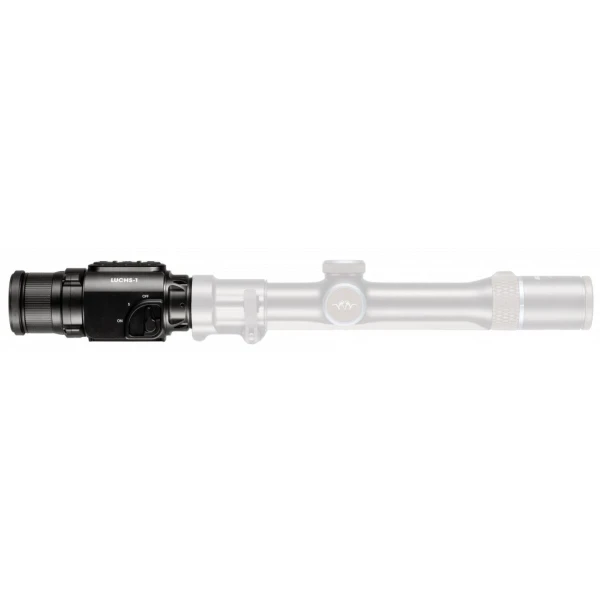

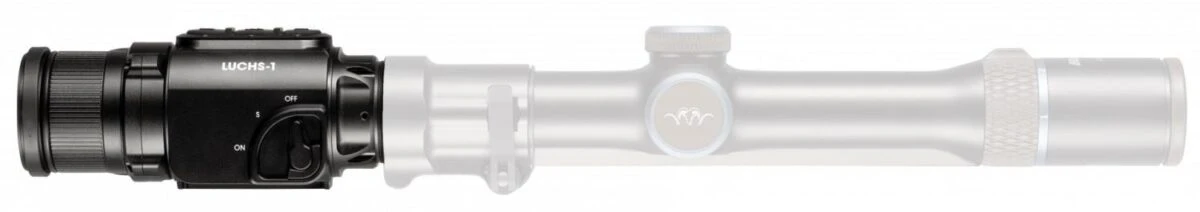

Suitable for use with universal and driven hunt riflescopes
Individual operating concept

INTUITIVE

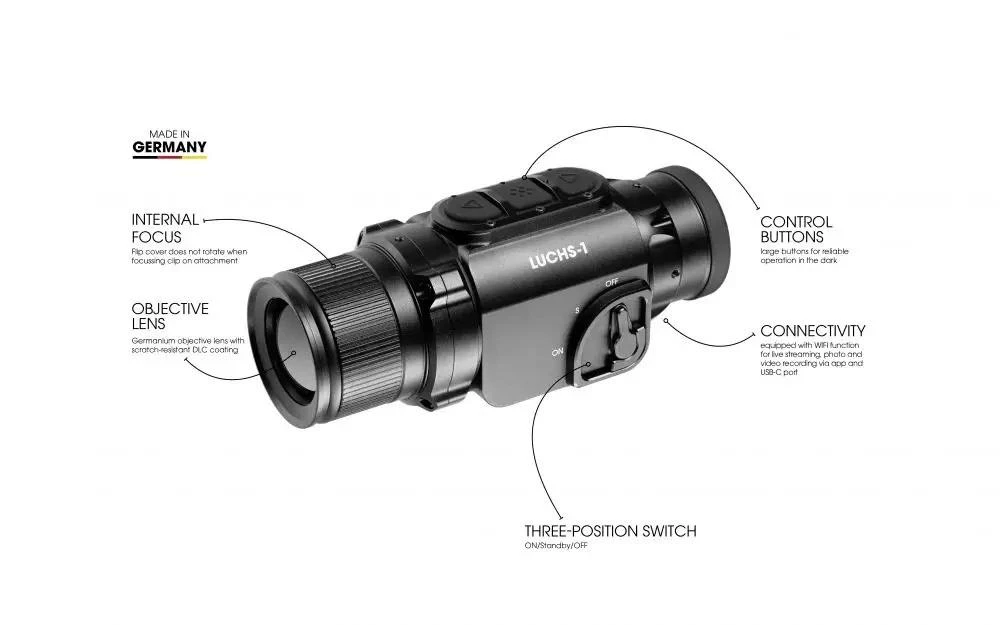

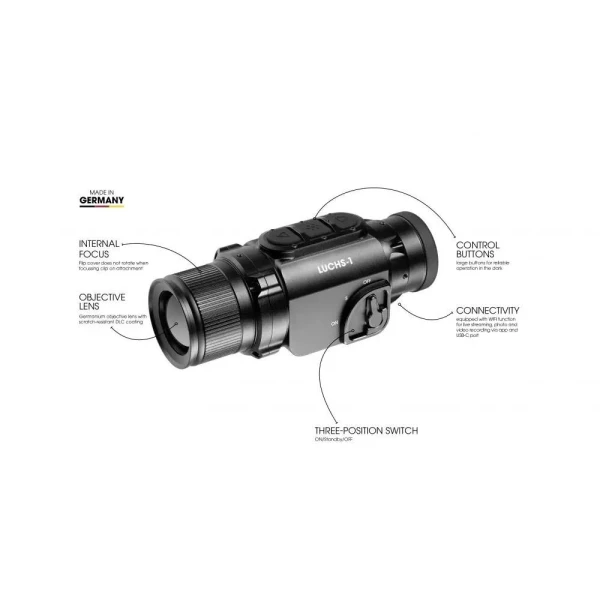

Visible and tactile switch, intuitive operation when aiming

Sensor 640×512 12μm VOx
Objective lens 35 mm / f1.0
Field of view 22 x 17.6 m / 100 m
Detection range 1.750 m
Optical magnification 1x (2x direct zoom available)
Frequency 50 Hz
NETD 50mK
Display 1024×768 OLED color display
Battery integrated, up to 9 hours operation
External power supply USB-C
Wireless connection/memory WiFi / 32GB interneral memory
Connection thread M43 x 0.75
Waterproof IP67
Operational temperature -20°C to 50°C
Dimensions 161 x 64 x 65mm
Weight 580g
